MPLS L3VPN: Inter-AS - Option B

Tuesday. December 18, 2018

CCIE

The previous post was used to explain Inter-AS L3VPN Option A, this post will be used to explain all related with Option B that in fact is similar to Option A with an exception that the Inter-AS connection use VPNv4 eBGP to exchange VPNv4 updates, instead of multiple VRF aware IGP or BGP. By this reason Inter-AS Option B becomes more scalable. Option B has some characteristics that define it:

A unique interface to interconnect the ASBRs.
ASBRs must be directly connected, also a GRE tunnel could be used, and thus be considered directly connected.
It doesn’t require any VRFs on the ASBRs.
ASBRs require no bgp default route-target filter command to store VPNv4 routes, because it doesn’t have any VRFs.
More invasive compared to Option A.
More scalable than Option A if the Service Provider has high number of VRFs.

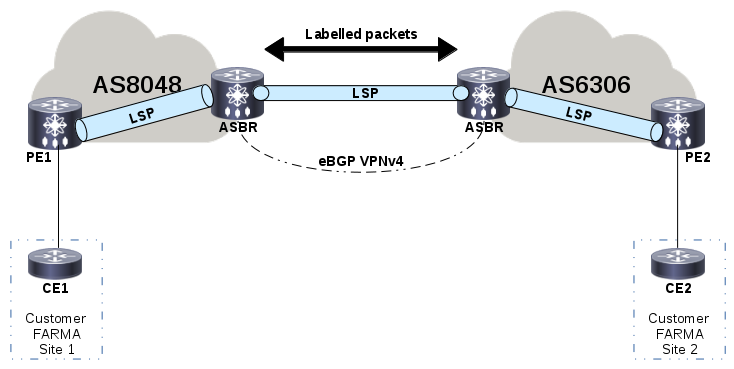

Topology

In the previous post during the troubleshooting process was possible seen two LSPs one on each Service Provider and unlabelled packets between them. With Option B looks like an end-to-end LSP although it in fact are three LSPs that are stitched together.

The link between ASBRs have no any IGP or LDP configured. So, BGP will be used to generate labels that’s means an eBGP VPNv4 session must be configured between the ASBRs. The next-hop sent in the update to the other ASBR will be the local ASBR. Each ASBR needs to generate a label for the next-hop when BGP updates are sent to each other.

There are two different ways to deploy an Option B:

ASBR be the next-hop: This means that the next-hop-self parameter must be set on both ASBRs. Thus, any PE within the Service Provider will have the local ASBR as the next-hop with a transport label through the IGP + LDP. When this way is used, there are three LSPs. One between the PE and the ASBR on the first Service Provider, another one between ASBRs, and the last one between the ASBR and the PE on the remote Service Provider.
Redistribute eBGP link into the IGP of each Service Provider: This means have the next-hop remain unchanged when VPNv4 updates are sent between the ASBRs. Thus, any PE within the Service Provider receives the update next-hop that will be the remote ASBR, to solve this, the link that connects both ASBRs must be redistributed into the IGP used on each Service Provider and LDP will be the responsible to generate the label. BGP will use connected routes with netmask /32 for the eBGP peer on the ASBR. When this way is used, there are two LSPs. One between the PE on the first Service Provider and the ASBR on the remote Service Provider, the last one between the ASBR and the PE on the remote Service Provider.

Demonstrating: Inter-AS L3VPN Option B

The following set of commands will be used to demonstrate the basic configuration to establish an Inter-AS L3VPN Option B with ASBR as the next-hop, and assuming that the two MPLS backbones of each Service Providers are already configured.

PEs in both Service Providers are configured with the same Route Distinguisher (RD) and Route Target (RT) for the customer FARMA.

On AS8048

hostname PE1
!
vrf definition FARMA
 rd 6306:8048
 !
 address-family ipv4
  route-target export 6306:8048
  route-target import 6306:8048
 exit-address-family
!
!
interface Ethernet0/3
 vrf forwarding FARMA
 description PE-CE1
 ip address 192.168.57.1 255.255.255.252
!
!
router eigrp AS8048
!
address-family ipv4 unicast vrf FARMA autonomous-system 101
  !
  topology base
   redistribute bgp 8048 metric 1000 10 255 1 1500
  exit-af-topology
  network 192.168.57.0 0.0.0.3
 exit-address-family
!
router bgp 8048
 !
 address-family ipv4 vrf FARMA
  redistribute eigrp 101
 exit-address-family
!

hostname ASBR
!
interface Ethernet0/3
 description ASBR8048-ASBR6306
 ip address 190.40.14.1 255.255.255.252
 mpls bgp forwarding
!
!
router bgp 8048
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 no bgp default route-target filter
 neighbor 1.1.1.1 remote-as 8048
 neighbor 1.1.1.1 update-source Loopback0
 neighbor 190.40.14.2 remote-as 6306
 !
 address-family ipv4
 exit-address-family
 !
 address-family vpnv4
  neighbor 1.1.1.1 activate
  neighbor 1.1.1.1 send-community both
  neighbor 1.1.1.1 next-hop-self
  neighbor 190.40.14.2 activate
  neighbor 190.40.14.2 send-community both
 exit-address-family
!

hostname CE1
!
interface Loopback0
 ip address 7.7.7.7 255.255.255.255
!
interface Ethernet0/3
 description CE-PE
 ip address 192.168.57.2 255.255.255.252
!
!
router eigrp 101
 network 0.0.0.0
 eigrp router-id 7.7.7.7
!

On AS6306

hostname PE2
!
vrf definition FARMA
 rd 6306:8048
 !
 address-family ipv4
  route-target export 6306:8048
  route-target import 6306:8048
 exit-address-family
!
!
interface Ethernet0/1
 vrf forwarding FARMA
 description PE-CE2
 ip address 192.168.167.1 255.255.255.0
!
!
router eigrp AS6306
!
address-family ipv4 unicast vrf FARMA autonomous-system 101
  !
  topology base
   redistribute bgp 6306 metric 1000 10 255 1 1500
  exit-af-topology
  network 192.168.167.0
 exit-address-family
!
router bgp 6306
 !
 address-family ipv4 vrf FARMA
  redistribute eigrp 101
 exit-address-family
!

hostname ASBR
!
interface Ethernet0/3
 description AS6306-AS8048
 ip address 190.40.14.2 255.255.255.252
 mpls bgp forwarding
!
router bgp 6306
 bgp log-neighbor-changes
 no bgp default ipv4-unicast
 no bgp default route-target filter
 neighbor 11.11.11.11 remote-as 6306
 neighbor 11.11.11.11 update-source Loopback0
 neighbor 190.40.14.1 remote-as 8048
 !
 address-family ipv4
 exit-address-family
 !
 address-family vpnv4
  neighbor 11.11.11.11 activate
  neighbor 11.11.11.11 send-community both
  neighbor 11.11.11.11 next-hop-self
  neighbor 190.40.14.1 activate
  neighbor 190.40.14.1 send-community both
 exit-address-family
!

hostname CE2
!
interface Loopback0
 ip address 17.17.17.17 255.255.255.255
!
interface Ethernet0/1
 description CE-PE
 ip address 192.168.167.2 255.255.255.0
!
!
router eigrp 101
 network 0.0.0.0
 eigrp router-id 17.17.17.17
!

Verifying end-to-end reachability between CEs

CE1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is not set

      7.0.0.0/32 is subnetted, 1 subnets
C        7.7.7.7 is directly connected, Loopback0
      17.0.0.0/32 is subnetted, 1 subnets
D        17.17.17.17 [90/435200] via 192.168.57.1, 00:23:51, Ethernet0/3
      192.168.57.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.57.0/30 is directly connected, Ethernet0/3
L        192.168.57.2/32 is directly connected, Ethernet0/3
D     192.168.167.0/24 [90/307200] via 192.168.57.1, 00:23:51, Ethernet0/3

CE1#ping 17.17.17.17 source 7.7.7.7
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 17.17.17.17, timeout is 2 seconds:
Packet sent with a source address of 7.7.7.7
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 2/3/7 ms

CE1#traceroute 17.17.17.17 source 7.7.7.7
Type escape sequence to abort.
Tracing the route to 17.17.17.17
VRF info: (vrf in name/id, vrf out name/id)
  1 192.168.57.1 2 msec 1 msec 0 msec
  2 10.3.5.3 [MPLS: Labels 16/33 Exp 0] 5 msec 4 msec 9 msec
  3 10.2.3.2 [MPLS: Labels 16/33 Exp 0] 12 msec 5 msec 9 msec
  4 10.2.4.4 [MPLS: Label 33 Exp 0] 7 msec 4 msec 4 msec
  5 190.40.14.2 [MPLS: Label 31 Exp 0] 4 msec 5 msec 6 msec
  6 10.11.14.11 [MPLS: Labels 25/31 Exp 0] 3 msec 4 msec 6 msec
  7 10.11.13.13 [MPLS: Labels 22/31 Exp 0] 5 msec 4 msec 5 msec
  8 192.168.167.1 [MPLS: Label 31 Exp 0] 7 msec 4 msec 4 msec
  9 192.168.167.2 12 msec *  7 msec

With a simple traceroute between CEs we can see there are three different LSP (Label Switched Path) are being used to provide end-to-end reachability, where the first LSP is using the label 33, the second one the label 31, and the last one the label 31.

Verifying LSP-1 from PE1 to ASBR within AS8048 using label 33

PE1# show ip bgp vpnv4 vrf FARMA 17.17.17.17
BGP routing table entry for 6306:8048:17.17.17.17/32, version 28
Paths: (1 available, best #1, table FARMA)
  Not advertised to any peer
  Refresh Epoch 5
  6306
    4.4.4.4 (metric 31) from 1.1.1.1 (1.1.1.1)
      Origin incomplete, metric 0, localpref 100, valid, internal, best
      Extended Community: RT:6306:8048 0x8800:32768:0 0x8801:8048:153600
        0x8802:65281:256000 0x8803:65281:1500 0x8806:0:286331153
      Originator: 4.4.4.4, Cluster list: 1.1.1.1
      mpls labels in/out nolabel/33
      rx pathid: 0, tx pathid: 0x0


PE1# show ip route vrf FARMA 17.17.17.17

Routing Table: FARMA
Routing entry for 17.17.17.17/32
  Known via "bgp 8048", distance 200, metric 0
  Tag 6306, type internal
  Redistributing via eigrp 101
  Advertised by eigrp 101 metric 1000 10 255 1 1500
  Last update from 4.4.4.4 01:17:50 ago
  Routing Descriptor Blocks:
  * 4.4.4.4 (default), from 1.1.1.1, 01:17:50 ago
      Route metric is 0, traffic share count is 1
      AS Hops 1
      Route tag 6306
      MPLS label: 33
      MPLS Flags: MPLS Required

Verifying LSP-2 between ASBRs using label 31

ASBR8048# show ip bgp vpnv4 all 17.17.17.17
BGP routing table entry for 6306:8048:17.17.17.17/32, version 16
Paths: (1 available, best #1, no table)
  Advertised to update-groups:
     2
  Refresh Epoch 1
  6306
    190.40.14.2 from 190.40.14.2 (14.14.14.14)
      Origin incomplete, localpref 100, valid, external, best
      Extended Community: RT:6306:8048 0x8800:32768:0 0x8801:8048:153600
        0x8802:65281:256000 0x8803:65281:1500 0x8806:0:286331153
      mpls labels in/out 33/31
      rx pathid: 0, tx pathid: 0x0

Verifying LSP-3 from ASBR to PE2 within AS6306 using label 31

ASBR6306# show ip bgp vpnv4 all 17.17.17.17
BGP routing table entry for 6306:8048:17.17.17.17/32, version 16
Paths: (1 available, best #1, no table)
  Advertised to update-groups:
     2
  Refresh Epoch 1
  Local
    16.16.16.16 (metric 20) from 11.11.11.11 (11.11.11.11)
      Origin incomplete, metric 3584000, localpref 100, valid, internal, best
      Extended Community: RT:6306:8048
        Cost:pre-bestpath:128:3584000 (default-2143899647) 0x8800:32768:0
        0x8801:8048:153600 0x8802:65281:256000 0x8803:65281:1500
        0x8806:0:286331153
      Originator: 16.16.16.16, Cluster list: 11.11.11.11
      mpls labels in/out 31/31
      rx pathid: 0, tx pathid: 0x0

Verifying unlabelled traffic from PE2 to CE2 within AS6306

PE2# show ip bgp vpnv4 vrf FARMA 17.17.17.17
BGP routing table entry for 6306:8048:17.17.17.17/32, version 17
Paths: (1 available, best #1, table FARMA)
  Advertised to update-groups:
     1
  Refresh Epoch 1
  Local
    192.168.167.2 from 0.0.0.0 (16.16.16.16)
      Origin incomplete, metric 3584000, localpref 100, weight 32768, valid, sourced, best
      Extended Community: RT:6306:8048
        Cost:pre-bestpath:128:3584000 (default-2143899647) 0x8800:32768:0
        0x8801:8048:153600 0x8802:65281:256000 0x8803:65281:1500
        0x8806:0:286331153
      mpls labels in/out 31/nolabel
      rx pathid: 0, tx pathid: 0x0

References

RFC4364 BGP/MPLS IP Virtual Private Networks - MP-eBGP for VPNv4
